4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites

4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites
4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites

Large Image :  4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites

Product Details:
Place of Origin: Shandong, China
Brand Name: Luxin
Model Number: TG2
Payment & Shipping Terms:
Minimum Order Quantity: 600 square meters
Price: $1.35 - $1.70/square meters
Packaging Details: Special PP double woven bag for export
Supply Ability: 10000 Square Meter/Square Meters per Day
Contact Now

4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites

Description
Warranty: More Than 5 Years After-sale Service: Online Technical Support, Free Spare Parts
Project Solution Capability: Total Solution For Projects Application: Outdoor, Landfill
Design Style: Modern Product Name: 3D Composite Drainage Geonet
Material: High-density Polyethylene Plastic Keyword: Drainage
Color: Black White Usage: Draingae System
Function: Water Draining Length: 30m
Width: 4m Certificate: ISO9001
Port: Qingdao/Shanghai/Tianjin Port

Product Description

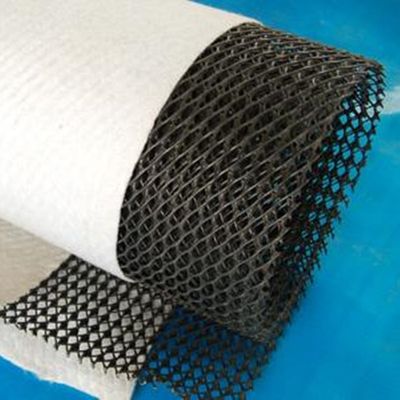

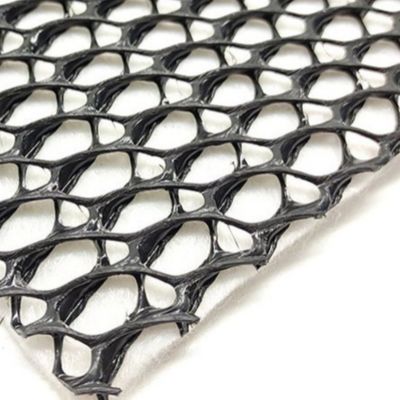

Composite Drainage Geonet (also known as Geotextile Drainage Board or Tunnel Drainage Board) is composed of a three-dimensional plastic geonet with geotextile on both sides. It can replace traditional sand and gravel layers and is mainly used for drainage of waste landfills, roadbeds, and tunnel walls.

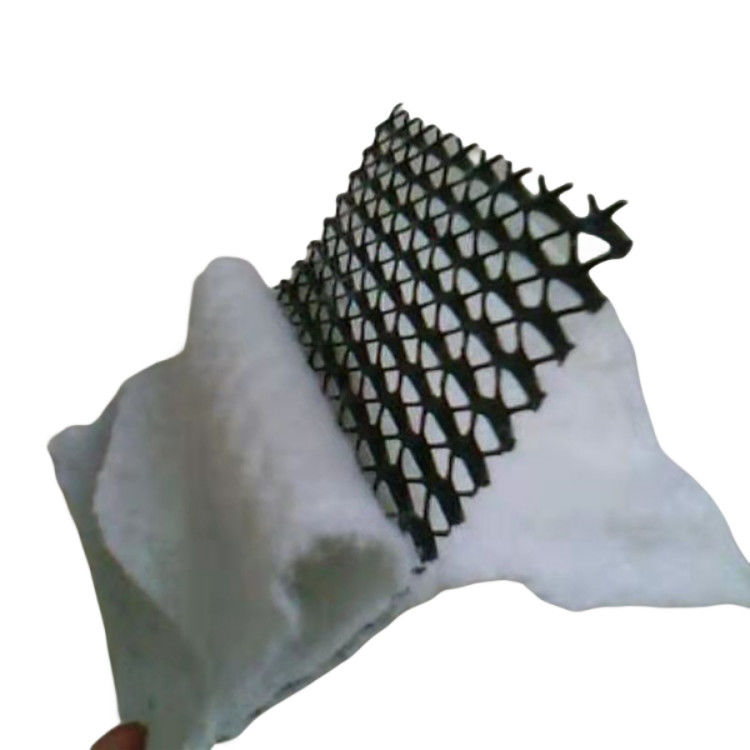

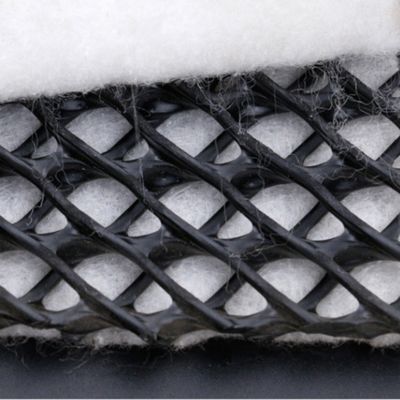

Composite Drainage Geonet is a type of drainage material. Made from high-density polyethylene and processed through extrusion molding process, it has a three layers three-dimensional structure. The middle rib have strong rigidity and are arranged longitudinally to form drainage channels. The diagonally arranged reinforcing ribs form support to prevent the embedding of geotextiles in drainage channels, which can maintain good drainage performance even under high loads. Stick geotextile on both sides of the drainage network core to form a composite drainage network. With comprehensive performance of "filtration, drainage, breathability, and protection", it is currently an ideal drainage material.
4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 0
4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 1
4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 2
4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 3
4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 4
4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 5
4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 6
Specification
item
value
Warranty
More than 5 years
After-sale Service
Online technical support, Free spare parts
Project Solution Capability
total solution for projects
Design Style
Modern
Place of Origin
China
Shandong
Brand Name
Luxin
Model Number
TG2
Product name
3D composite drainage network
Application
Landfill
Material
High-density Polyethylene Plastic
Keyword
Drainage
Color
Black White
Usage
Draingae System
Function
Water Draining
Length
50m
Width
4m
Certificate
ISO9001
Specification and Model
1200g
1360g
1520g
1680g
Mass per unit area of Three-dimensional Composite Drainage Geonet （g/㎡）
≥1200
≥1360
≥1520
≥1680
Thickness of Three-dimensional Composite Drainage Geonet（mm）
≥8.2
≥9.2
≥10.2
≥11.2
Longitudinal tensile strength of Three-dimensional Composite Drainage Geonet（kN/m）
≥16.0
Transmissivity of Three-dimensional Composite Drainage Geonet （㎡/s）
≥1.2×10-4
Peel strength between drainage geonet and geotextile（kN/m）
≥0.3
Thickness of drainage geonet（mm）
≥5.0
≥6.0
≥7.0
≥8.0
Longitudinal tensile strength of geonet（kN/m）
≥8.0
Mass per unit area of geotextile（g/㎡）
≥200
Normal permeability coefficient of geotextile（cm/s）
≥0.3
Width of Three-dimensional Composite Drainage Geonet（m）
4
Length of Three-dimensional Composite Drainage Geonet（m）
30
Packing & Delivery
4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 7
4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 8
4m Width Black and White Environmentally Friendly Geocomposite Drain for Landfill Sites 9
Special PP double woven bag for export
