Modern Three D Composite Drainage Network 50m Length 5mm Thickness For Landfill Sites

Large Image : Modern Three D Composite Drainage Network 50m Length 5mm Thickness For Landfill Sites

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Luxin
Model Number:	TG2

Payment & Shipping Terms:

Minimum Order Quantity:	600 square meters
Price:	$1.34 - $1.70/square meters
Packaging Details:	Special PP double woven bag for export
Supply Ability:	10000 Square Meter/Square Meters per Day

Contact Now

Modern Three D Composite Drainage Network 50m Length 5mm Thickness For Landfill Sites

Description

Warranty:	More Than 5 Years	After-sale Service:	Online Technical Support, Free Spare Parts
Project Solution Capability:	Total Solution For Projects	Application:	Outdoor, Landfill
Design Style:	Modern	Product Name:	3D Composite Drainage Network
Material:	High-density Polyethylene Plastic	Keyword:	Drainage
Color:	Black White	Usage:	Draingae System
Function:	Water Draining	Length:	50m
Width:	4m	Certificate:	ISO9001
Port:	Qingdao/Shanghai/Tianjin Port

Product Description

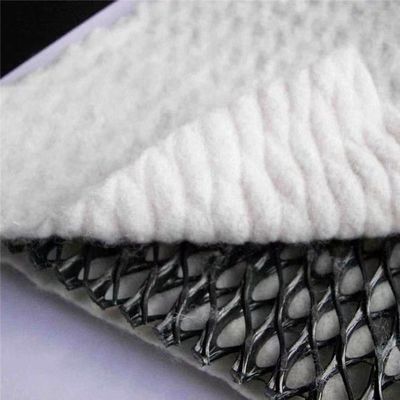

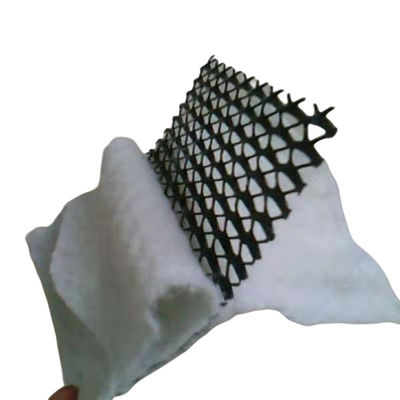

Composite Drainage Geonet (also known as Geotextile Drainage Board or Tunnel Drainage Board) is composed of a three-dimensional plastic geonet with geotextile on both sides. It can replace traditional sand and gravel layers and is mainly used for drainage of waste landfills, roadbeds, and tunnel walls.
Composite Drainage Geonet is a type of drainage material. Made from high-density polyethylene and processed through extrusion molding process, it has a three layers three-dimensional structure. The middle rib have strong rigidity and are arranged longitudinally to form drainage channels. The diagonally arranged reinforcing ribs form support to prevent the embedding of geotextiles in drainage channels, which can maintain good drainage performance even under high loads. Stick geotextile on both sides of the drainage network core to form a composite drainage network. With comprehensive performance of "filtration, drainage, breathability, and protection", it is currently an ideal drainage material.

Specification

item	value
Warranty	More than 5 years
After-sale Service	Online technical support, Free spare parts
Project Solution Capability	total solution for projects
Design Style	Modern
Place of Origin	China
	Shandong
Brand Name	Luxin
Model Number	TG2
Product name	3D composite drainage network
Application	Landfill
Material	High-density Polyethylene Plastic
Keyword	Drainage
Color	Black White
Usage	Draingae System
Function	Water Draining
Length	50m
Width	4m
Certificate	ISO9001

Specification and Model	1200g	1360g	1520g	1680g
Mass per unit area of Three-dimensional Composite Drainage Geonet (g/㎡)	≥1200	≥1360	≥1520	≥1680
Thickness of Three-dimensional Composite Drainage Geonet(mm)	≥8.2	≥9.2	≥10.2	≥11.2
Longitudinal tensile strength of Three-dimensional Composite Drainage Geonet(kN/m)	≥16.0
Transmissivity of Three-dimensional Composite Drainage Geonet (㎡/s)	≥1.2×10-4
Peel strength between drainage geonet and geotextile(kN/m)	≥0.3
Thickness of drainage geonet(mm)	≥5.0	≥6.0	≥7.0	≥8.0
Longitudinal tensile strength of geonet(kN/m)	≥8.0
Mass per unit area of geotextile(g/㎡)	≥200
Normal permeability coefficient of geotextile(cm/s)	≥0.3
Width of Three-dimensional Composite Drainage Geonet(m)	4
Length of Three-dimensional Composite Drainage Geonet(m)	30

Packing & Delivery

Special PP double woven bag for export

Company Profile

FAQ

1. who are we?
We are based in Shandong, China, start from 2021,sell to Domestic Market(35.00%),Southeast Asia(25.00%),Oceania(10.00%),Africa(10.00%),North America(2.00%),South Asia(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Central America(2.00%),Western Europe(2.00%),Eastern Asia(2.00%),Mid East(2.00%),South America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Geomembrane,Geotextile,Composite Drainage Net,Geocell,Geogrid

4. why should you buy from us not from other suppliers?
Complete and experienced production line; Skilled workers; Strict quality management system; The tenet of survival by quality and development by service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
