density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways

density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways

Large Image :  density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways

Product Details:
Place of Origin: Shandong, China
Brand Name: Luxin
Model Number: TG2
Payment & Shipping Terms:
Minimum Order Quantity: 600 square meters
Price: $1.49 - $1.95/square meters
Packaging Details: Special PP double woven bag for export
Supply Ability: 10000 Square Meter/Square Meters per Day
Contact Now

density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways

Description
Warranty: More Than 5 Years After-sale Service: Online Technical Support, Free Spare Parts
Project Solution Capability: Total Solution For Projects Application: Outdoor, Landfill
Design Style: Modern Product Name: 3D Composite Drainage Geonet
Material: High-density Polyethylene Plastic Keyword: Drainage
Color: Black White Usage: Draingae System
Function: Water Draining Length: 30m
Width: 4m Certificate: ISO9001
Port: Qingdao/Shanghai/Tianjin Port

Product Description
Composite Drainage Geonet (also known as Geotextile Drainage Board or Tunnel Drainage Board) is composed of a three-dimensional plastic geonet with geotextile on both sides. It can replace traditional sand and gravel layers and is mainly used for drainage of waste landfills, roadbeds, and tunnel walls.

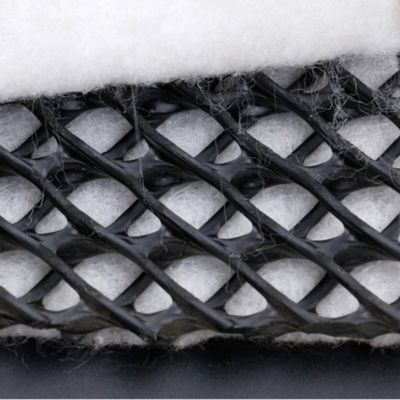

Composite Drainage Geonet is a type of drainage material. Made from high-density polyethylene and processed through extrusion molding process, it has a three layers three-dimensional structure. The middle rib have strong rigidity and are arranged longitudinally to form drainage channels. The diagonally arranged reinforcing ribs form support to prevent the embedding of geotextiles in drainage channels, which can maintain good drainage performance even under high loads. Stick geotextile on both sides of the drainage network core to form a composite drainage network. With comprehensive performance of "filtration, drainage, breathability, and protection", it is currently an ideal drainage material.
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 0
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 1
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 2
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 3
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 4
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 5
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 6
Specification
item
value
Warranty
More than 5 years
After-sale Service
Online technical support, Free spare parts
Project Solution Capability
total solution for projects
Design Style
Modern
Place of Origin
China
Shandong
Brand Name
Luxin
Model Number
TG2
Product name
3D composite drainage network
Application
Landfill
Material
High-density Polyethylene Plastic
Keyword
Drainage
Color
Black White
Usage
Draingae System
Function
Water Draining
Length
50m
Width
4m
Certificate
ISO9001
Specification and Model
1200g
1360g
1520g
1680g
Mass per unit area of Three-dimensional Composite Drainage Geonet （g/㎡）
≥1200
≥1360
≥1520
≥1680
Thickness of Three-dimensional Composite Drainage Geonet（mm）
≥8.2
≥9.2
≥10.2
≥11.2
Longitudinal tensile strength of Three-dimensional Composite Drainage Geonet（kN/m）
≥16.0
Transmissivity of Three-dimensional Composite Drainage Geonet （㎡/s）
≥1.2×10-4
Peel strength between drainage geonet and geotextile（kN/m）
≥0.3
Thickness of drainage geonet（mm）
≥5.0
≥6.0
≥7.0
≥8.0
Longitudinal tensile strength of geonet（kN/m）
≥8.0
Mass per unit area of geotextile（g/㎡）
≥200
Normal permeability coefficient of geotextile（cm/s）
≥0.3
Width of Three-dimensional Composite Drainage Geonet（m）
4
Length of Three-dimensional Composite Drainage Geonet（m）
30
Packing & Delivery
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 7
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 8
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 9

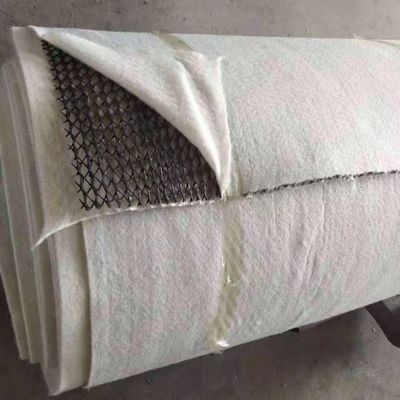

Special PP double woven bag for export
Company Profile
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 10
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 11
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 12
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 13
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 14
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 15
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 16
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 17
density Polyethylene Plastic Geocomposite Drain Modern Design 6mm Thickness for Highways 18
FAQ
1. who are we?
We are based in Shandong, China, start from 2021,sell to Domestic Market(35.00%),Southeast Asia(25.00%),Oceania(10.00%),Africa(10.00%),North America(2.00%),South Asia(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Central America(2.00%),Western Europe(2.00%),Eastern Asia(2.00%),Mid East(2.00%),South America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Geomembrane,Geotextile,Composite Drainage Net,Geocell,Geogrid

4. why should you buy from us not from other suppliers?
Complete and experienced production line; Skilled workers; Strict quality management system; The tenet of survival by quality and development by service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
