Three-dimensional Composite Drainage Network with Length Options of 50m 100m or Customized

Large Image : Three-dimensional Composite Drainage Network with Length Options of 50m 100m or Customized

Product Details:

Place of Origin:	Shandong, China
Brand Name:	luxin01
Model Number:	luxin001

Payment & Shipping Terms:

Minimum Order Quantity:	1200 square meters
Price:	$0.95/square meters 1200-9999 square meters
Packaging Details:	PP woven plastic bags
Supply Ability:	10000 Square Meter/Square Meters per Day

Contact Now

Three-dimensional Composite Drainage Network with Length Options of 50m 100m or Customized

Description

Warranty:	5 Years	After-sale Service:	Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement, Other
Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation, Others	Application:	Office Building, Roads, Tunnels, Reservoirs, Roads, Tunnels, Reservoirs
Design Style:	Industrial	Type:	Luxin
Material:	High-density Polyethylene Plastic	Length:	50m/100m/customer Requirement
Color:	Black White	Packing:	Standard Packing
MOQ:	1200 M2	Port:	Qingdao
Certificate:	CE/ISO9001/ISO14001	Installation:	Rapid Construction
Payment:	T/T	Port:	Qingdao/Shanghai/Tianjin Port

Road Base Geonet 3D Composite Drainage Geonet Compound Net

Tr-dimensiton composite geonet for drainage is made of a unique tri-dimension geonet adhibited geotextile on both sides. It has the property of geotextile (filtration function) and geonet (drainage and protection) and provide a function system
"filtration-drainage-protection". The core of net with its unique tri-dimension structure can bear higher compressing load in
construction and remaiin the certain thickness, provide good water conductivity.

Product Description

Product Features

1. Strong drainage (equivalent to one meter thick gravel drainage).

2. High tensile strength.

3. Reduce the probability of embedding geotextiles into the mesh core, and maintain long-term drainage

4. Long term high pressure load (can withstand about 3000Ka compression load).

5. Corrosion resistance, acid and alkali resistance, long service life.

6. Convenient construction, shorten the construction period and reduce the cost.

Specification

NO	Model	Units	Parameter	Note
1	compound weight of unit area	g/㎡	≥1400
2	fabrics weight of unit area	g/㎡	≥200
3	compound thickness	mm	≥7.0
4	core thickness	mm	≥5.0
5	compound in vertical tensile strength	KN/m	≥18.0
6	compound in transverse tensile strength	KN/m	≥15.0	Vertical and horizontal
7	core of the tensile strength	KN/m	≥15.0
8	peel strength	KN/m	≥0.3
9	compound conducting water rate	m/s	≥1.2*10^-3
10	fabrics permeability coefficent	cm/s	≥0.3

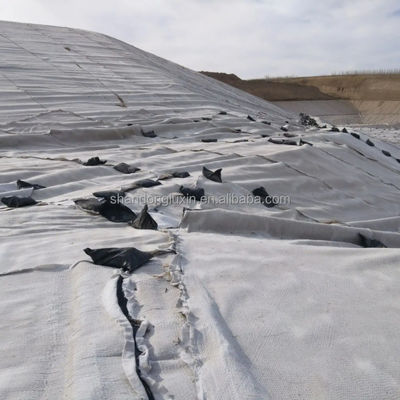

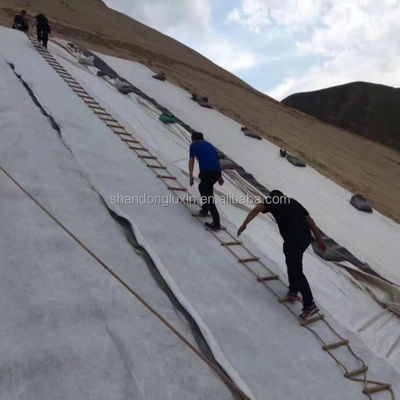

Application

Workshop

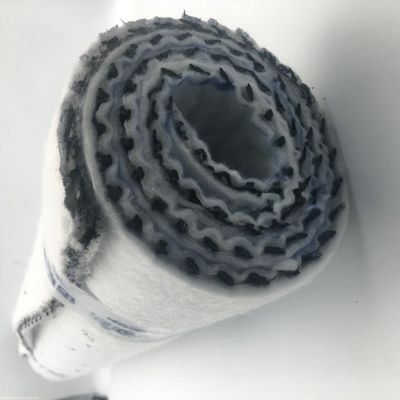

Product packaging

Company Information

Shandong Luxin New Material Co., Ltd. is a comprehensive geosynthetic service provider as well as solution provider integrating Engineering design, manufacturing, installation, guarantee in Seepage control industry.The products provided by Luxin include geotextile, geomembrane, composite geomembrane warp-knitted geogrid, glass fiber geogrid, plastic geogrid, steel-plastic geogrid, mining geogrid, high-strength mining polyester fiber mesh,geocell and other geosynthetics.

Customer Photos

FAQ

1. Are you a manufacturer or a trading company?
A: Our factory has been established for over 16 years ,and has its own trading department. So we have the competitive price with best quality.

2. How does your factory carry out quality control?
A: Quality Control is one of our most important link. We attach great importance to quality control from the very beginning to the end of the production process. All of the product will be fully processed and strictly tested before packaging for shipment.

3. Can I get samples for checking the quality?
A: We are very glad to provide free samples for you to check the quality of our product . The postage fees is usually 30-50
dollars. We will give this sample postage fees back to you after your formal order. After the sample details are confirmed, the express delivery usually needs around 3-5 days.
