Width 2m-4m Composite Geotextile Plastics Geonet Drainage Net for Project Solutions

Large Image : Width 2m-4m Composite Geotextile Plastics Geonet Drainage Net for Project Solutions

Product Details:

Place of Origin:	Shandong, China
Model Number:	NLGDN

Payment & Shipping Terms:

Minimum Order Quantity:	2000 square meters
Price:	$1.10 - $2.70/square meters
Packaging Details:	concrete canvas products are dispatched as rolls with the width 1.6m or 2m,<br>length can be customized<br>outside pakage in pp bags<br>inside pakage in plastic bags
Supply Ability:	20000 Square Meter/Square Meters per Day

Contact Now

Width 2m-4m Composite Geotextile Plastics Geonet Drainage Net for Project Solutions

Description

Warranty:	More Than 5 Years	After-sale Service:	Online Technical Support, Onsite Installation, Onsite Training
Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects	Application:	Outdoor
Design Style:	Asian	Type:	HDPE+Geotextiles
Product Name:	Drainage Geocomposite	Width:	2m-4m
Length:	30m-50m	Thickness:	4mm-8mm
Color:	White, Black Or As Request	Keyword:	Composite Geomembrane
Name:	HDPE /LDPE /lldpe Geomembrane/pond Line	Surface:	Double Smooth/Double Texture
Port:	Qingdao/Shanghai/Tianjin Port

Products Description

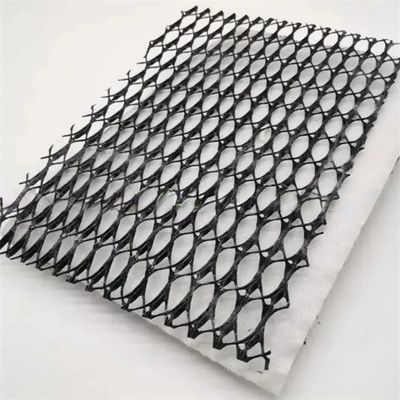

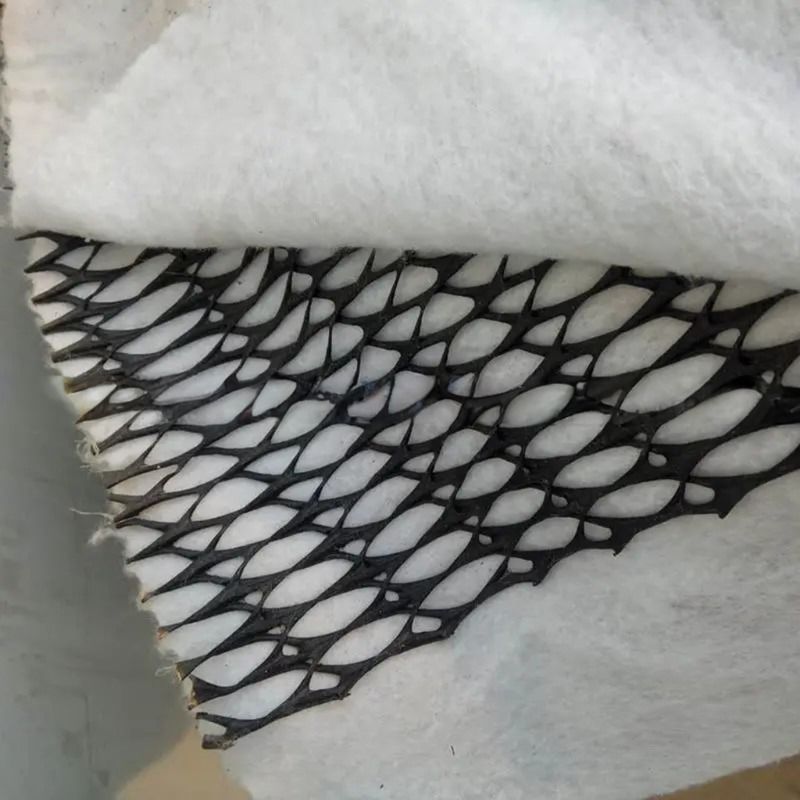

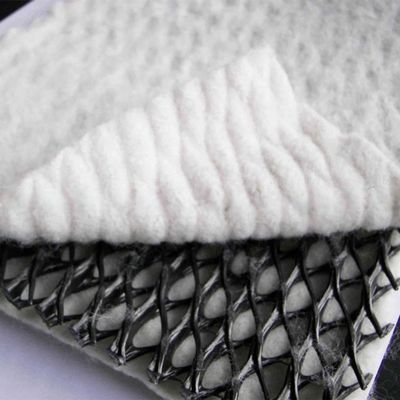

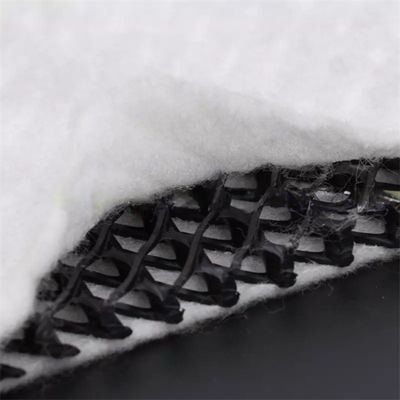

Three-dimensional drainage network (also known as three-dimensional geotechnical drainage plate,
tunnel drainage plate, drainage plate) is composed of three-dimensional plastic network double-sided bonding seepage geotextiles,which can replace the traditional sand and gravel layer, mainly used for landfill,roadbed and drainage of tunnel inner wall.

Property	Unit	NLDG 50/D200	NLDG 63/D200	NLDG 70/D200	NLDG 80/D200	NLDG 90/D200	Test Standard
Drainage Net Specification
Hydraulic conductivity (MD)	m2/s	2.8×10-3	2.8×10-3	3.2×10-3	4.0×10-3	5 x10-3	ASTM D4716
Puncture Resistance	KN/m	0.17	0.17	0.17	0.17	0.17	ASTM D7005
Core Material Geonet Specification
Thickness	mm	5	6.3	7	8	9	ASTM D5199
Density	g/cm-3	0.94	0.94	0.94	0.94	0.94	ASTM D1505
Carbon Black Content	%	2	2	2	2	2	ASTM D1603
Tensile strength (MD)	kN/m	8	10	12	14	16	ASTM D7199
Hydraulic conductivity (MD)	m2/s	6	8	10	12	14	ASTM D4716
Geotextile Specification
Unit weight	g/m2	200	200	200	200	200	/
Geotextile type	Continuous filament non-woven geotextile

Application

It is mainly used in railway, highway, tunnel, municipal engineering, reservoir, slope protection and other drainage projects.

Advantages

Three-dimensional composite drainage network is a new geosynthetic material. The structure is a three - dimensional geotextile core. The 3d geotextile consists of a thick vertical rib and a diagonal rib at the top and bottom. Groundwater that can quickly drain off roads has its own pore maintenance system that blocks capillary water under high loads. At the same time, it can also play isolation and foundation reinforcement. A new geosynthetic material. The 3d composite drainage network is made of special 3d geotextiles. A combination of geotextiles (backfiltration) and geotextiles (drainage and protection) provides a complete "backfiltrat

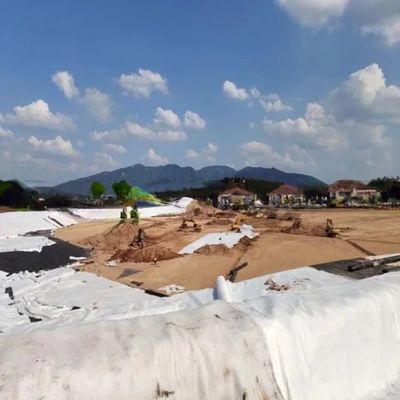

Customer Photos
