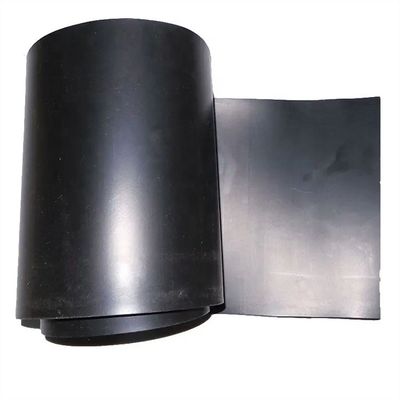

1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites

1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites

Large Image :  1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites

Product Details:
Place of Origin: Shandong, China
Brand Name: LuXin
Certification: CE/ISO9001
Model Number: GH-2S
Payment & Shipping Terms:
Minimum Order Quantity: 3000 square meters
Price: $1.00/square meters 3000-21000 square meters
Packaging Details: Special PP double woven bag for export
Supply Ability: 10000 Square Meter/Square Meters per Day
Contact Now

1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites

Description
Type: Geomembranes Warranty: More Than 5 Years
After-sale Service: Online Technical Support, Free Spare Parts, Return And Replacement Project Solution Capability: Graphic Design
Application: Outdoor Design Style: Modern
Color: Black Material: High Density Polyethylene EVA
Product Name: Smooth Geomembrane Keyword: HDPE Geomembrane Waterproof
Thickness: 0.2mm-2.8mm Surface: Double Smooth
Length: 50-200m Width: 1-6m
Standard: ASTM GRI-GM13

Product Description
High density polyethylene (HDPE) geomembranes provide an impermeable barrier against a
wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.
Features:
1) Good physical and mechanic performance.
2) High tearing resistance, strong deformation adaptability.
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance.
4) Good adaptability to high and low temperature, non-toxicity, long service life.
5) Good waterproof, drainage, anti-seepage and damp proof effects.
6) Complete width and thickness specifications, low cost and easy installation.
Benefits:
1) A member of the polyethylene family that is resistant to chemical corrosion due to its dense structure.
2) Field welded with hot wedge welders and extrusion welders. These factory quality welds are virtually stronger than the sheet itself.
3) The good QC-QA testing capabilities in the marketplace.
4) It is UV stable and cost-effective.
5) Available in roll stock and come in varying thicknesses ranging from 0.3mm to 2.8mm depending on your requirements.
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 0
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 1
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 2
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 3
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 4
Smooth Geomembran
Item
Index
The thickness(mm)
0.75
1.00
1.25
1.50
2.00
2.50
3.00
The density(g/cm3)
≧0.94
Tensile yield strength (longitudinal and transverse)N/mm
≧11
≧15
≧18
≧22
≧29
≧37
≧44
Tensile break strength (longitudinal and transverse)N/mm
≧20
≧27
≧33
≧40
≧53
≧67
≧80
Elongation at yield (longitudinal and transverse)%
≧12
Elongation at break (longitudinal and transverse)%
≧700
Right-angle tear resistance (longitudinal and transverse)N
≧93
≧125
≧160
≧190
≧250
≧315
≧375
Puncture resistance N
≧240
≧320
≧400
≧480
≧640
≧800
≧960
Stress cracking under tensile load (dead-load tensile method with notch)h
≧300
Carbon black content%
2.0~3.0
Oxidative induction time(OIT) min
Induction time of oxidation at atmospheric pressure≧100
Induction time of high pressure oxidation≧400
85℃ thermal aging (OIT retention rate at atmospheric pressure after 90 days) %
≧55
Uv resistance (OIT retention rate after 1600h UV irradiation) %
≧50

Production Process Flow Chart

1. Raw Material Preparation: High density polyethylene (HDPE) is selected as the raw material, which is screened, cleaned, dried, and then fed into the extruder.

2. Extrusion Molding: Feed pre processed raw materials into an extruder, heat and melt them, and then extrude a film like product from the head of the extruder. During this process, the temperature, pressure, speed and other parameters of the extruder need to be adjusted according to different materials and thicknesses.

3. Cooling & Cutting: The extruded geomembrane needs to be cooled, usually using a cooling roller or water cooling method. Cut the cooled geomembrane to obtain the required size and shape.

4. Inspection & Packaging: Inspect the geomembrane, including the detection of indicators such as thickness, density, tensile strength, and puncture strength. Geomembranes that meet the standard requirements are usually packaged in rolls or folds.
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 5
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 6
Specification
item
value
Type
Geomembranes
Warranty
More than 5 years
After-sale Service
Online technical support, Free spare parts, Return and Replacement
Project Solution Capability
graphic design
Application
Outdoor
Design Style
Modern
Place of Origin
China
Shandong
Brand Name
LuXin
Model Number
GH-2S
Color
Black
Material
High Density Polyethylene EVA
Product Name
Smooth Geomembrane
Keyword
HDPE Geomembrane Waterproof
Thickness
0.2mm-2.8mm
Surface
Double Smooth
Length
50-200m
Width
1-6m
Standard
ASTM GRI-GM13
Certification
CE/ISO9001

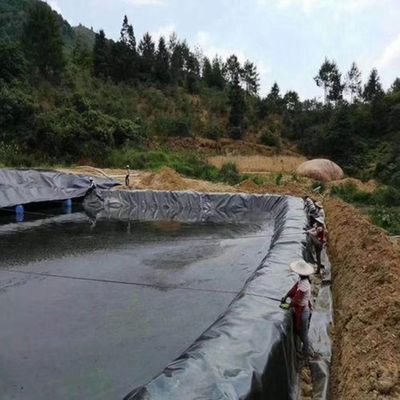

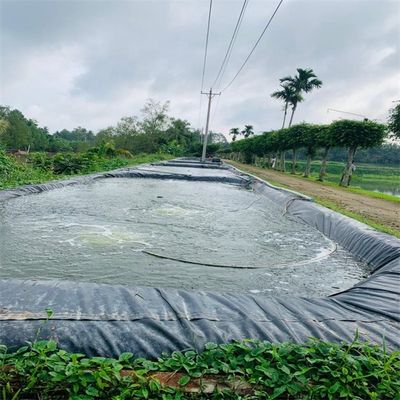

Usage Scenario

Geomembrane is a polymer material with excellent anti-seepage, isolation, and protection
effects. It is mainly made of plastics such as polyethylene and polypropylene, and is widely used in fields such as water
conservancy, transportation, and environmental protection.
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 7
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 8
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 9
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 10
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 11
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 12
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 13
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 14
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 15
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 16

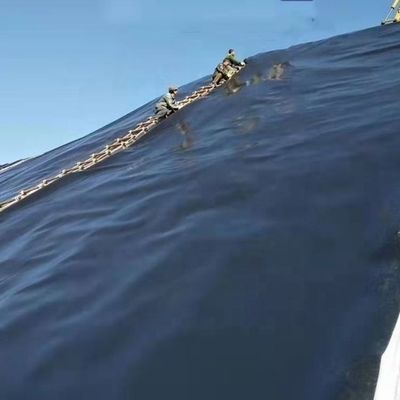

Installation Steps of Geomembrane

1. Preparation: Before starting the installation of the geomembrane, it is necessary to clean
the construction site to ensure a smooth surface without any protrusions or sharp objects to avoid damaging the geomembrane.

2. Laying geomembrane: Lay the geomembrane on the construction site, leaving sufficient overlap at the edges. It is generally recommended that the overlap width be no less than 30 centimeters. For larger construction sites, welding or bonding can be used to bond the geomembrane together.

3. Fixed geomembrane: Around and at the joints of the geomembrane, it is necessary to use fixtures such as U-nails or fixtures to fix it on the ground to avoid being blown up by wind or washed away by water.

4. Quality inspection: After installing the geomembrane, a quality inspection is required to ensure that it is securely installed and free from damage or loopholes.
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 17
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 18
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 19
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 20
Packing & Delivery
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 21
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 22
Special PP double woven bag for export
Company Profile
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 23
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 24
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 25
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 26
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 27
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 28

Foreign Merchants

Our products are widely recognized in the USA, Mexico,Southeast Asia,the Middle East, Africa and other regions all over the world.
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 29
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 30
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 31
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 32
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 33
1-6m Width Black HDPE Geomembranes 80mil 60mil for Fish Pond Liner Used in Landfill Sites 34
FAQ
1. who are we?
We are based in Shandong, China, start from 2021,sell to Domestic Market(35.00%),Southeast Asia(25.00%),Oceania(10.00%),Africa(10.00%),North America(2.00%),South Asia(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Central America(2.00%),Western Europe(2.00%),Eastern Asia(2.00%),Mid East(2.00%),South America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Geomembrane,Geotextile,Composite Drainage Net,Geocell,Geogrid

4. why should you buy from us not from other suppliers?
Complete and experienced production line; Skilled workers; Strict quality management system; The tenet of survival by quality and development by service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
