30mil 60mil HDPE Fish Pond Liner for Aquaculture Length 50-200m Directly Sold By Outdoor

Name: 30mil 60mil HDPE Fish Pond Liner for Aquaculture Length 50-200m Directly Sold By Outdoor
Brand: Shandong Luxin New Material Co., Ltd.
SKU: GH-2S
Price: 1,500.00 USD
Availability: InStock

All Products

Construction Geomembrane Sheet
(1016)

Waterproof Tarpaulin Sheet
(1315)

Composite Geotextile Fabric
(0)

Composite Drainage Net
(95)

Geocell Road Paver
(36)

Certification

I'm Online Chat Now

30mil 60mil HDPE Fish Pond Liner for Aquaculture Length 50-200m Directly Sold By Outdoor

Large Image : 30mil 60mil HDPE Fish Pond Liner for Aquaculture Length 50-200m Directly Sold By Outdoor

Product Details:

Place of Origin:	Shandong, China
Brand Name:	LuXin
Certification:	CE/ISO9001
Model Number:	GH-2S

Payment & Shipping Terms:

Minimum Order Quantity:	3000 square meters
Price:	$1.00/square meters 3000-21000 square meters
Packaging Details:	Special PP double woven bag for export
Supply Ability:	4000 Square Meter/Square Meters per Day

Contact Now

30mil 60mil HDPE Fish Pond Liner for Aquaculture Length 50-200m Directly Sold By Outdoor

Description

Type:	Geomembranes	Warranty:	More Than 5 Years
After-sale Service:	Online Technical Support, Free Spare Parts, Return And Replacement	Project Solution Capability:	Graphic Design
Application:	Outdoor	Design Style:	Modern
Color:	Black	Material:	High Density Polyethylene EVA
Product Name:	Smooth Geomembrane	Keyword:	HDPE Geomembrane Waterproof
Thickness:	0.2mm-2.8mm	Surface:	Double Smooth
Length:	50-200m	Width:	1-6m
Standard:	ASTM GRI-GM13

Product Description

High density polyethylene (HDPE) geomembranes provide an impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.

Smooth Geomembran

Item

Index

The thickness(mm)

0.75

1.00

1.25

1.50

2.00

2.50

3.00

The density(g/cm3)

≧0.94

Tensile yield strength (longitudinal and transverse)N/mm

≧11

≧15

≧18

≧22

≧29

≧37

≧44

Tensile break strength (longitudinal and transverse)N/mm

≧20

≧27

≧33

≧40

≧53

≧67

≧80

Elongation at yield (longitudinal and transverse)%

≧12

Elongation at break (longitudinal and transverse)%

≧700

Right-angle tear resistance (longitudinal and transverse)N

≧93

≧125

≧160

≧190

≧250

≧315

≧375

Puncture resistance N

≧240

≧320

≧400

≧480

≧640

≧800

≧960

Stress cracking under tensile load (dead-load tensile method with notch)h

≧300

Carbon black content%

2.0~3.0

Oxidative induction time(OIT) min

Induction time of oxidation at atmospheric pressure≧100

Induction time of high pressure oxidation≧400

85℃ thermal aging (OIT retention rate at atmospheric pressure after 90 days) %

≧55

Uv resistance (OIT retention rate after 1600h UV irradiation) %

≧50

Production Process Flow Chart

1. Raw Material Preparation: High density polyethylene (HDPE) is selected as the raw material, which is screened, cleaned, dried, and then fed into the extruder.

2. Extrusion Molding: Feed pre processed raw materials into an extruder, heat and melt them, and then extrude a film like product from the head of the extruder. During this process, the temperature, pressure, speed and other parameters of the extruder need to be adjusted according to different materials and thicknesses.

3. Cooling & Cutting: The extruded geomembrane needs to be cooled, usually using a cooling roller or water cooling method. Cut the cooled geomembrane to obtain the required size and shape.

4. Inspection & Packaging: Inspect the geomembrane, including the detection of indicators such as thickness, density, tensile strength, and puncture strength. Geomembranes that meet the standard requirements are usually packaged in rolls or folds.

Specification

item	value
Type	Geomembranes
Warranty	More than 5 years
After-sale Service	Online technical support, Free spare parts, Return and Replacement
Project Solution Capability	graphic design
Application	Outdoor
Design Style	Modern
Place of Origin	China
	Shandong
Brand Name	LuXin
Model Number	GH-2S
Color	Black
Material	High Density Polyethylene EVA
Product Name	Smooth Geomembrane
Keyword	HDPE Geomembrane Waterproof
Thickness	0.2mm-2.8mm
Surface	Double Smooth
Length	50-200m
Width	1-6m
Standard	ASTM GRI-GM13
Certification	CE/ISO9001

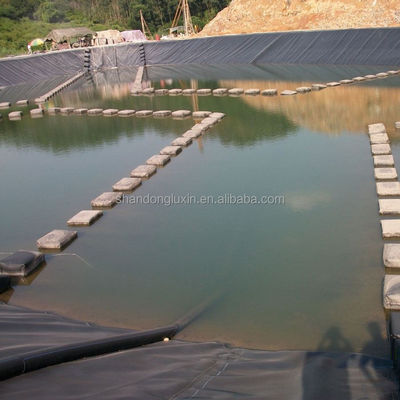

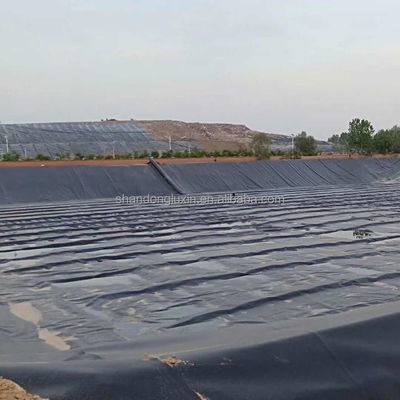

Usage Scenario

Geomembrane is a polymer material with excellent anti-seepage, isolation, and protection
effects. It is mainly made of plastics such as polyethylene and polypropylene, and is widely used in fields such as water
conservancy, transportation, and environmental protection.

Installation Steps of Geomembrane

1. Preparation: Before starting the installation of the geomembrane, it is necessary to clean
the construction site to ensure a smooth surface without any protrusions or sharp objects to avoid damaging the geomembrane.

2. Laying geomembrane: Lay the geomembrane on the construction site, leaving sufficient overlap at the edges. It is generally recommended that the overlap width be no less than 30 centimeters. For larger construction sites, welding or bonding can be used to bond the geomembrane together.

3. Fixed geomembrane: Around and at the joints of the geomembrane, it is necessary to use fixtures such as U-nails or fixtures to fix it on the ground to avoid being blown up by wind or washed away by water.

4. Quality inspection: After installing the geomembrane, a quality inspection is required to ensure that it is securely installed and free from damage or loopholes.

Packing & Delivery

Special PP double woven bag for export

Company Profile

Foreign Merchants

Our products are widely recognized in the USA, Mexico,Southeast Asia,the Middle East, Africa and other regions all over the world.

FAQ

1. who are we?
We are based in Shandong, China, start from 2021,sell to Domestic Market(35.00%),Southeast Asia(25.00%),Oceania(10.00%),Africa(10.00%),North America(2.00%),South Asia(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Central America(2.00%),Western Europe(2.00%),Eastern Asia(2.00%),Mid East(2.00%),South America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Geomembrane,Geotextile,Composite Drainage Net,Geocell,Geogrid

4. why should you buy from us not from other suppliers?
Complete and experienced production line; Skilled workers; Strict quality management system; The tenet of survival by quality and development by service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
