50m-100m/roll Length Anti-Aging Geomembrane for Fish Ponds Online Technical Support

Large Image : 50m-100m/roll Length Anti-Aging Geomembrane for Fish Ponds Online Technical Support

Product Details:

Place of Origin:	Shandong, China
Brand Name:	LuXin
Model Number:	GH-2S

Payment & Shipping Terms:

Minimum Order Quantity:	300 square meters
Price:	$1.00/square meters 300-2100 square meters
Packaging Details:	Special PP double woven bag for export
Supply Ability:	10000 Square Meter/Square Meters per Day

Contact Now

50m-100m/roll Length Anti-Aging Geomembrane for Fish Ponds Online Technical Support

Description

Type:	Geomembranes	Warranty:	More Than 5 Years
After-sale Service:	Online Technical Support, Return And Replacement	Project Solution Capability:	Others
Application:	Outdoor, Landfill	Design Style:	Modern
Color:	Black White	Material:	HDPE EVA
Product Name:	Smooth Geomembrane	Keyword:	HDPE Geomembrane Waterproof
Thickness:	0.2mm-2.8mm	Surface:	Smooth
Length:	50m-100m/roll (as Request)	Width:	1-6m
Standard:	ISO9001	Port:	Qingdao/Shanghai/Tianjin Port

Product Description

High density polyethylene (HDPE) geomembranes provide an impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.
Features:
1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation.
Benefits:
1)A member of the polyethylene family that is resistant to chemical corrosion due to its dense structure.
2)Field welded with hot wedge welders and extrusion welders. These factory quality welds are virtually stronger than the sheet itself.
3)The good QC-QA testing capabilities in the marketplace.
4)It is UV stable and cost-effective.
5)Available in roll stock and come in varying thicknesses ranging from 0.3mm to 2.8mm depending on your requirements.

Smooth Geomembrane

Item

Index

The thickness(mm)

0.75

1.00

1.25

1.50

2.00

2.50

3.00

The density(g/cm3)

≧0.94

Tensile yield strength (longitudinal and transverse)N/mm

≧11

≧15

≧18

≧22

≧29

≧37

≧44

Tensile fracture strength (longitudinal and transverse)N/mm

≧20

≧27

≧33

≧40

≧53

≧67

≧80

Yield elongation (longitudinal and transverse)%

≧12

Elongation at break (longitudinal and transverse)%

≧700

Right-angle tearing load (longitudinal and transverse)N

≧93

≧125

≧160

≧190

≧250

≧315

≧375

Puncture resistance N

≧240

≧320

≧400

≧480

≧640

≧800

≧960

Stress cracking under tensile load (dead-load tensile method with notch)h

≧300

Carbon black content%

2.0~3.0

Oxidation induction time(OIT) min

Induction time of oxidation at atmospheric pressure≧100

Induction time of high pressure oxidation≧400

85℃ thermal aging (OIT retention rate at atmospheric pressure after 90 days) %

≧55

Uv resistance (OIT retention rate after 1600h UV irradiation) %

≧50

Specification

item	value
Type	Geomembranes
Warranty	More than 5 years
After-sale Service	Return and Replacement
Project Solution Capability	Others
Application	Outdoor
Place of Origin	China
	Shandong
Brand Name	LuXin
Model Number	GH-2S
Application	Landfill
Color	Black White
Material	HDPE EVA
Product Name	Textured geomembrane
Keyword	HDPE Geomembrane Waterproof
Thickness	0.2mm-2.8mm
Surface	Smooth
Length	50m-100m/roll (as Request)
Width	1-6m
Standard	ISO9001

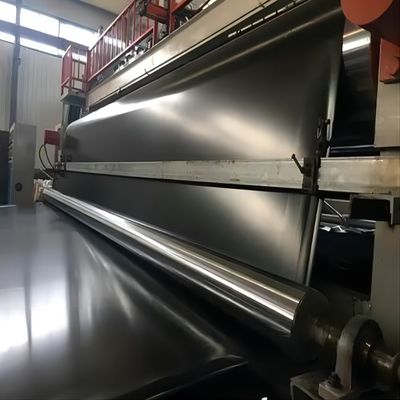

Extrusion laminating is a non stretchable and non oriented flat extruded film produced by rapid cooling of melt casting. There are two methods: single-layer casting and multi-layer co extrusion casting. The production process is as follows: first, the raw materials such as high-density polyethylene particles, color masterbatch, and carbon black are proportioned in a certain proportion, stirred evenly, and then fed into the material bin. Then, the raw materials are heated and melted into a fluid through an extrusion machine. After being squeezed by a screw, they are extruded at the film lip and pulled out by a steel rod or rubber roller for molding and cooling. The gap size of the pressure roller is the thickness of the geomembrane, and finally, they are pulled and cut into rolls. The advantages of extrusion laminating are high production efficiency, adjustable between different thicknesses, low cost, high glossiness and good flexibility of the finished geomembrane, with a minimum thickness of 0.2mm. The disadvantage is that the thickness is not uniform enough.

The production process of blow membrane is a three-layer co extrusion blow molding method. The production process involves feeding raw materials through three heating screws into the blow molding machine head, where they are heated and melted into melts. These melts are squeezed out of the machine head under pressure and form a cylindrical shape at the position of the machine head. Compressed air is blown up by the mold head to form a certain diameter of film bubbles, which are then pulled up and cooled by a traction roller to form a geotextile film, and then curled and extended downwards, After traction and segmentation, the geomembrane is unfolded and finally rolled into a roll through a film spreading frame. The advantages of blow membrane process are uniform thickness of geomembrane, high tensile strength, and stable quality of membrane. The disadvantages are high production cost, no price advantage, and lower glossiness and elongation than extrusion laminating.

Packing & Delivery

Special PP double woven bag for export

Company Profile

Shandong Luxin New Material Co., Ltd. is located in the well-known "Chinese peach town" -- Feicheng, with beautiful scenery and elegant environment. Our factory is connected with Jiqing expressway, Beijing-Shanghai expressway, Beijing-Fuzhou expressway, national highway 104 and Tai'an High-speed Railway Station, with convenient transportation and developed communication. Shandong Luxin New Material Co., Ltd. is the leading manufacturer geosynthetic products which has a wide application in the line of construction,aquaculture and agriculture. We deliver a complete range of products:Geomembrane,Geotextile Geogrid and Geosynthetic Clay Liners. We professionally design fabricate and install Geomembranes liners in various projects such as Storage Tank,Fish and Shrimp pond,Biodigester,Waste Landfill, Reservoirs,Canals,Power Plants in energy, Vapor Barriers,and Waste Water Treatment. Our products are widely recognized in the USA, Mexico,Southeast Asia,the Middle East, Africa and other regions all over the world. Our commitment to innovation, our focus on quality and our industry expertise allow us the flexibility to collaborate with our clients to develop a custom, purpose-fit solution. Company core values: Create competitiveness for customers - Achieve customers' satisfaction Create development for employees - Embody employees' value Create profits for the company - Company's sustainable development Company vision: Take the characteristic road of the industry and be an enterprise worthy of employee's pride.

FAQ

1. who are we?
We are based in Shandong, China, start from 2021,sell to Domestic Market(35.00%),Southeast Asia(25.00%),Oceania(10.00%),Africa(10.00%),North America(2.00%),South Asia(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Central America(2.00%),Western Europe(2.00%),Eastern Asia(2.00%),Mid East(2.00%),South America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Geomembrane,Geotextile,Composite Drainage Net,Geocell,Geogrid

4. why should you buy from us not from other suppliers?
Complete and experienced production line; Skilled workers; Strict quality management system; The tenet of survival by quality and development by service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
